DeatschWerks DW420 Series Fuel Pump – Ultra High-Flow In-Tank Fueling Solution
The DW420 Series fuel pumps from DeatschWerks are designed for extreme performance applications where maximum in-tank fuel flow and reliability are critical. As DeatschWerks’ new flagship standard-fitment in-tank pump, the DW420 is engineered to support very high horsepower builds, aggressive ethanol use, and demanding motorsport environments.
With an impressive 420 liters per hour (LPH) of flow at 40 PSI, the DW420 delivers significantly more capacity than traditional in-tank pumps, making it ideal for high-boost turbo setups, supercharged engines, E85 and ethanol-heavy applications, and vehicles pushing the limits of factory-style fuel systems.
Built for Ethanol, Boost & High Electrical Demand
The DW420 features a single-scroll composite turbine impeller combined with a computer-balanced armature, ensuring smooth, quiet operation even at high flow rates. Internally, the pump is equipped with carbon commutators and a fully encapsulated armature, providing long-term durability and full compatibility with ethanol-based fuels, including E85.

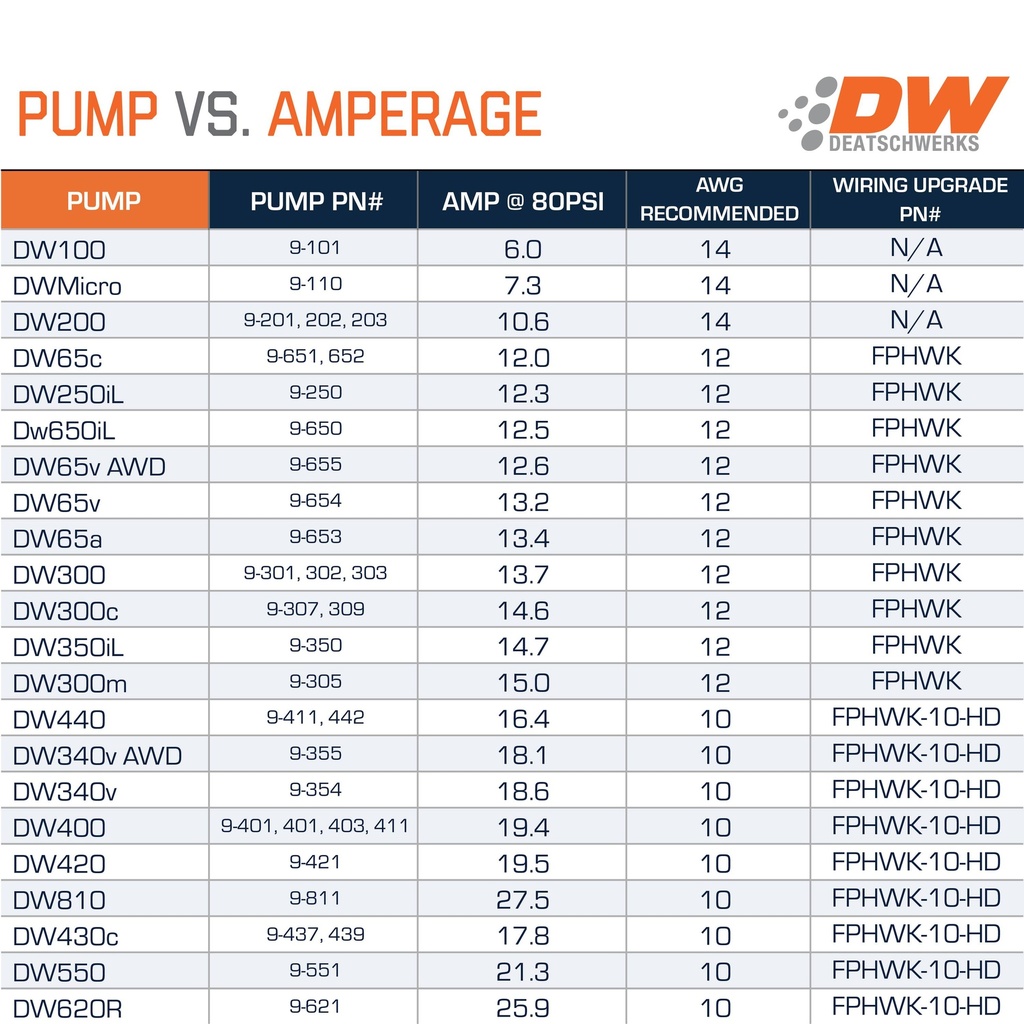

To support its higher output, the DW420 operates with increased current draw compared to smaller pumps. For optimal performance and consistent voltage delivery, DeatschWerks strongly recommends the use of a 10-gauge hardwire kit, ensuring maximum efficiency under load
DW420_Fuel_Pump_Tech_Sheet_10-2…
.Standard Fitment, Motorsport-Grade Performance
Despite its extreme flow capability, the DW420 maintains a standard in-tank form factor, allowing installation in many OEM fuel pump housings with appropriate supporting modifications. The pump features an electroplated steel housing, 5/16” outlet, 7.7 mm inlet, and a 110 PSI pressure relief valve (PRV) to maintain control under high-pressure conditions.
Every DW420 pump is flow-tested, engineered to strict quality standards, and backed by DeatschWerks’ 3-year no-fault warranty, reinforcing its reputation as a trusted solution for serious performance builds.
For enthusiasts and professional tuners who need maximum in-tank fueling without stepping up to external pumps, the DeatschWerks DW420 Series represents the ultimate balance of flow capacity, ethanol compatibility, and OEM-style integration.
