If you own a VW Golf mk8 R or GTI (2022+), Audi S3 8Y, Cupra Leon/Formentor, or a similar vehicle on the MQB Evo platform with a DSG DQ381 transmission, you have likely discovered a frustrating limitation: your transmission cannot be tuned.
RacingLine’s Mechatronic Board Upgrade addresses this issue the right way!

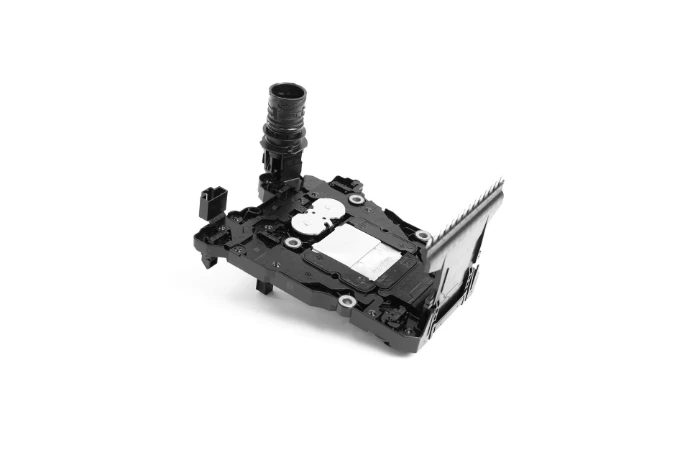

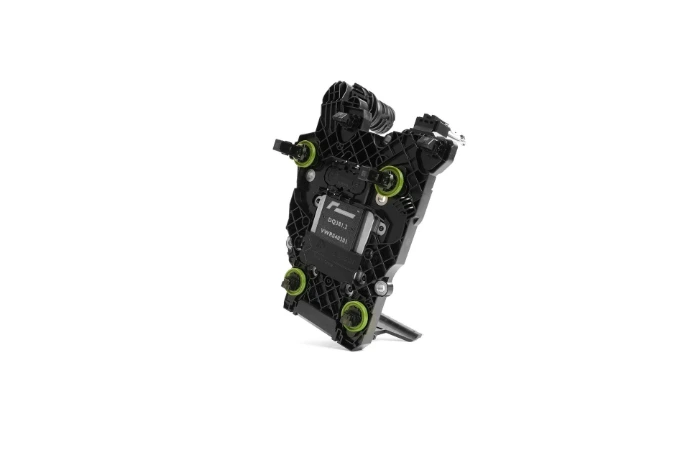

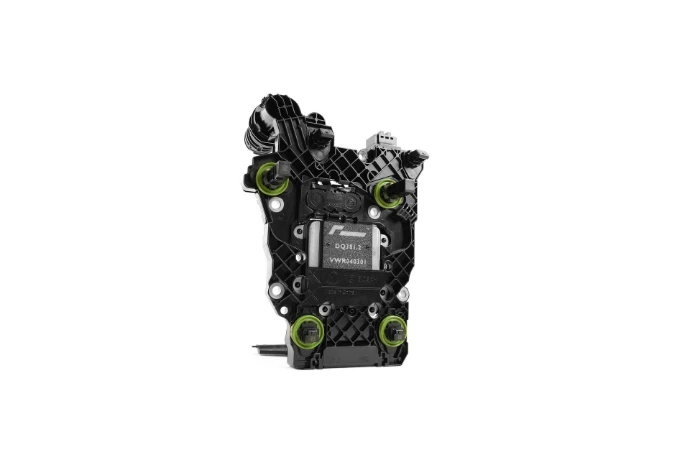

By replacing the locked ‘401’ bootloader factory circuit board with RacingLine’s Bosch-unlocked version, flashing via OBD (and our PDM Flash-at-Home system) becomes possible. This gives the DSG transmission a tuning-friendly ‘301’ bootloader.
Finally, this enables complete and correct RacingLine TCU calibration, allowing the clutch pressure to be accurately adjusted to the increased torque, complemented by a range of enhanced performance driving features, safely, correctly, and precisely as the transmission is designed to function.
With every Mechatronic Replacement Board, RacingLine’s advanced Dynamic TCU transmission tuning is included in the price.
Most DSG-equipped vehicles from 2022+ now come factory-equipped with the locked ‘401’ bootloader, which prevents any TCU calibration. Without access to the transmission's control system, performance upgrades remain permanently limited, regardless of how advanced the engine tuning is.
The RacingLine Mechatronic Board Replacement solves this problem!
Why is TCU access important?
Without TCU tuning options, even advanced tuned vehicles remain fundamentally limited:
-Torque limiters actively reduce engine power to protect an "untuned" transmission
-Factory shift points are not optimized for extra power or driving style
-Clutch pressures remain at conservative OEM levels
-Launch control is limited and ineffective
-Shift speeds are lower than what the hardware can handle
-In manual mode, mandatory upshifts remain active, resulting in a lack of true driver control
In short: the transmission becomes the bottleneck – not the engine.
But what is the '401' bootloader?
The DQ381 G2 (Generation 2) 7-speed DSG transmission, installed in most Volkswagen Group vehicles from 2022+, is equipped with a locked '401' bootloader.
This is VWG's latest security measure that prevents any form of modification or tuning of the Transmission Control Unit (TCU) via conventional OBD-II programming methods. End of story for high-power tuning.
Until now.
Installation?
The typical installation time is 3–4 hours, provided the right equipment and technical knowledge are available.
This is an installation that must be performed by a RacingLine Software dealer with a qualified technician who has experience replacing mechatronic circuit boards and can do so in a suitable workshop environment. Always check where your nearest Racingline dealer is!
Home or amateur installation is strongly discouraged and can void any form of warranty if improperly installed.
Confirmed applications:
VWR040301
> VW Golf 8 GTI
> VW Golf 8 GTI Clubsport
> VW Golf 8 R
> VW Arteon 2.0 TSI EA888.4
> VW T-Roc R 2.0 TSI
> VW Tiguan II 2.0 TSI 245hp
> VW Jetta / GLI 7
> Audi S3 8Y
> Audi A3 2.0 TSI 8Y
> Audi TTS 2.0 TFSI 8S 320hp (EA888.4)
> Audi TT 45 TFSI 8S 245hp (EA888.4)
> Audi SQ2
> Cupra Leon IV FW
> Cupra Formentor
> Cupra Ateca
> SEAT Tarraco
> Skoda Octavia IV NX
> Skoda Superb III B8 3V
> Skoda Kodiaq vRS
