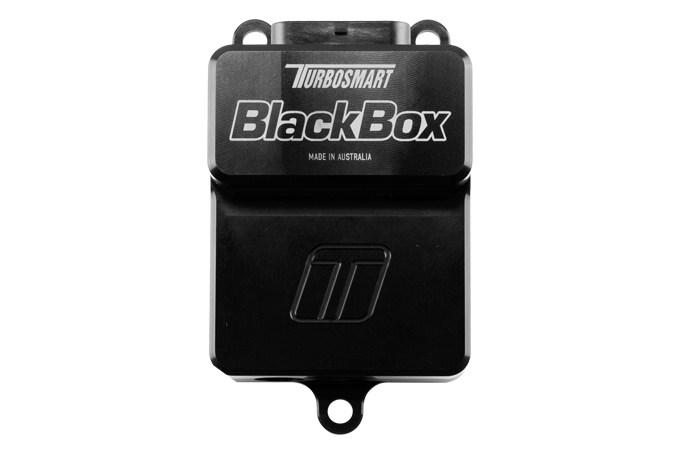

Turbosmart BlackBox Electronic Wastegate Controller

\n\t

BlackBox by Turbosmart is a dedicated Electronic Wastegate Controller which can be used in cooperation with a range of Factory, Aftermarket and Motorsport ECU’s. The BlackBox provides protection from the current demands and translation of basic as well as more advanced boost control strategies into a gate position and can be used on single, or twin electronic wastegate systems for the ultimate in boost control.

\n

The BlackBox is a Dual Channel, High current Capable H-Bridge Driver for use with the Turbosmart range of Electronic External Wastegates, including the StraightGate50 as well as our Electronic poppet style gates including; CompGate40, HyperGate45, ProGate50 and PowerGate60 electronic Wastegates. The BlackBox is capable of multiple strategies and will accept PWM (Pulse Width Modulation) inputs as used for traditional boost control solenoids, 0-5v position target, CAN position target and CAN bus override for more advanced ECU’s where control strategy can be developed natively.

\n

The Blackbox provides for auto-calibration of Electronic External Wastegates via a full sweep and includes over temp safety features using the temperature sensor inputs. The BlackBox is pre-configured with the flow vs. lifts calibration data of all Electronic Actuatuated Wastegates from Turbosmart for simple setup and accurate boost control. Settings can be adjusted via a simple USB connection and PC-based application, and unlimited control strategies can be implemented with the CAN-based override system where your strategy is limited only by your ECU’s capability.

\n

Features

\n

Dual Channel High Current H-Bridge Outputs
2 x Wastegate Valve Position Inputs (0-5v)
2 x Wastegate Temperature Inputs (0-5v)
2 x Frequency Inputs (Advanced Wastegate Position Encoder)
PWM Target Position Input
Analog 0-5v Position Target
CAN Bus Position Demand Target
CAN Bus Valve Area Target
CAN Bus Programmable PID Mode Option
Factory Loaded PID Calibration for all Turbosmart eGates
Internal Over-Current Protection
Internal Over-Temp Protection
Auto Position Calibration
Anodized Aluminium Housing
34 Pin Superseal Connector

\n\t
Onderdeelnummer: TS-0305-1001
756,19 € 756,19 € (Inclusief btw)

  • Merk
  • Verpakking
Product specificaties
Merk: Turbosmart

Turbosmart


Smarter Turbo Control, by Design

Turbosmart is an Australian manufacturer of high-performance forced induction accessories, built around a simple but powerful idea: turbo control should be smarter, more precise, and more reliable than the standard solutions the industry has traditionally offered. Founded on genuine passion for performance, the brand has grown into a globally recognised name in the forced induction aftermarket, trusted by racers, tuners, and enthusiasts across the world who demand products engineered to win and built to last.

A Global Standard, Set in Australia

Turbosmart's vision is straightforward: to be the first choice worldwide for forced induction upgrades across both performance and service industries. That ambition is backed by a product range that spans everything a turbocharged vehicle demands, from street-performance daily drivers to dedicated full race builds requiring the highest levels of boost control precision. With a growing international presence and brand advocates spanning tracks and workshops across the globe, Turbosmart has firmly established itself as a name that resonates far beyond its Australian origins. Their in-house engineering department also takes on complex industrial applications where the same hallmarks of their racing pedigree, precision, heat management, vibration control, and repeatability, translate directly into real-world solutions. It is this ability to operate at the cutting edge of both motorsport and industry that keeps Turbosmart at the forefront of forced induction technology worldwide.

Designed, Tested, and Manufactured In-House

Every Turbosmart product is designed, rigorously tested, and manufactured entirely in-house, ensuring that quality and performance are never compromised by external variables. Their engineering team applies a motorsport-first development philosophy, if it cannot survive the demands of competition, it does not reach the market. The result is a range of boost controllers, wastegates, blow-off valves, and turbo accessories that consistently raise the benchmark for boost control efficiency, durability, and precision across a wide range of turbocharged platforms.
