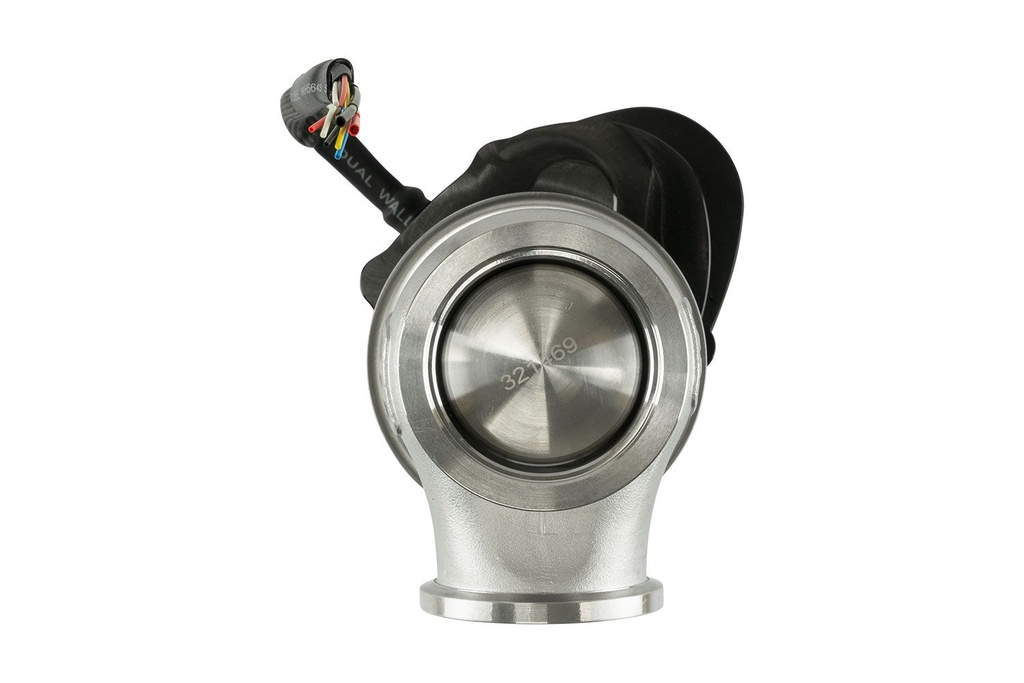

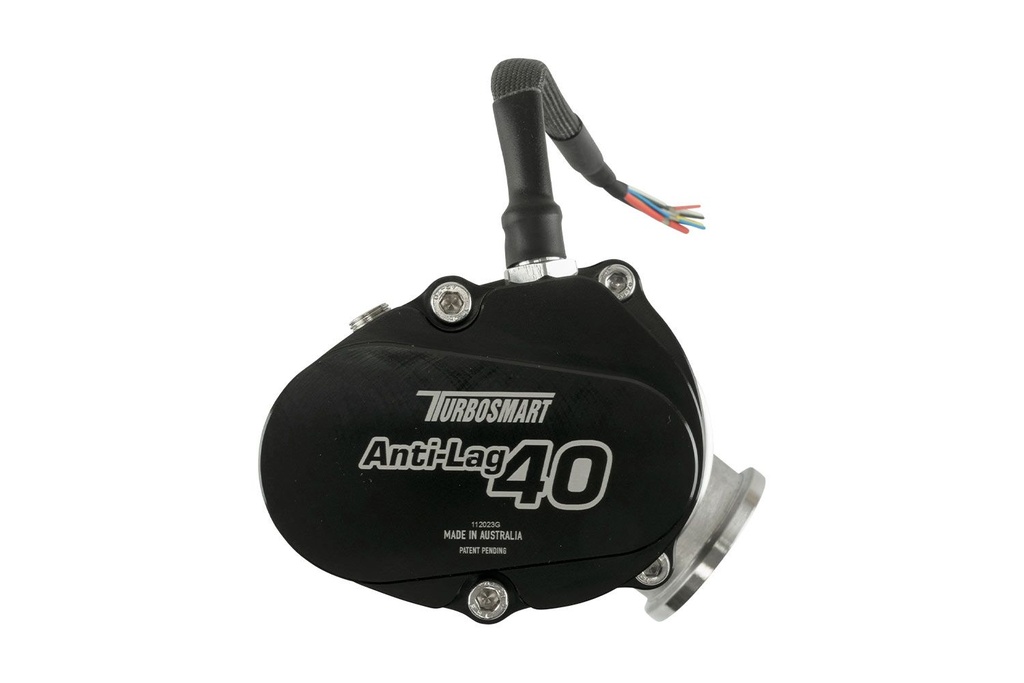

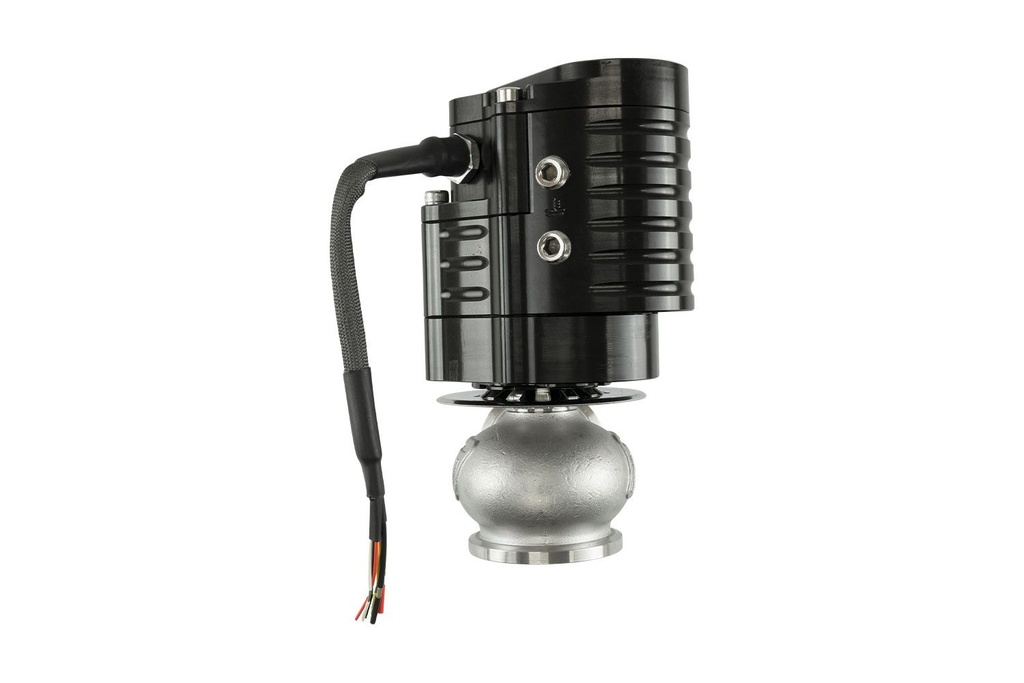

Turbosmart GenV eALV40 Electronic Anti-Lag Valve

The Turbosmart eALV40 (Fresh-Air bypass Anti-Lag Valve) for motorsport & high Performance Applications featuring fully electronic actuation, removing the need for the solenoids & tanks of traditional pneumatic systems. Featuring a 40mm valve diameter and a purpose designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication.

The fresh air valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle based late combustion event style anti-lag that can induce high engine stresses and break connecting rods.

The eALV40 utilised the SEMA Award Winning Technology of Turbosmart's GenV eWG Range, Providing unparalleled control & a specially sealed guide, fit for true ALV purpose.\n
\n

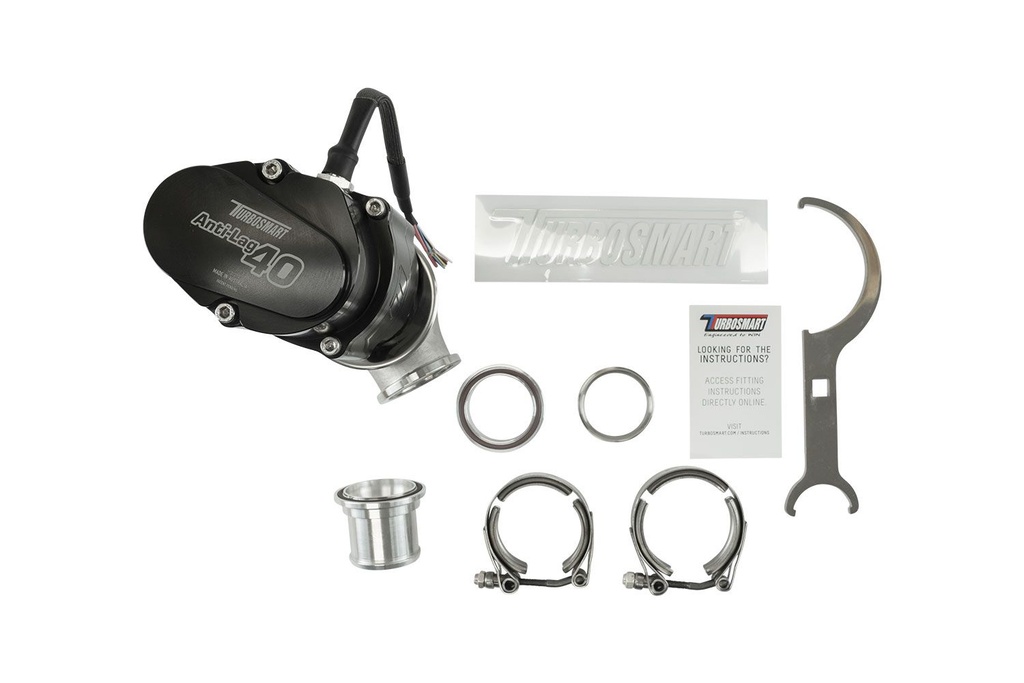

SUPPLIED WITH\n\n
  • GenV eALV40 Electronic Anti Lag Valve
  • \n
  • Un-Terminated Flying Lead
  • \n
  • CompGate40 Valve Seat
  • \n
  • CompGate40 Inlet & Outlet V-Bands
  • \n
  • CompGate40 Inlet & Outlet Weld Flanges
  • \n
  • Turbosmart Decal
  • \n\n
    SPARES\n
  • GenV ALV40 Valve Seat TS-0552-3001\n
  • GenV Replacement V-Band Nuts TS-0550-3080\n
  • GenV Inlet V-Band Clamp TS-0552-3003\n
  • Gen-V Outlet V-Band Clamp TS-0552-3004\n
    ACCESSORIES\n
  • ALV40 6-1 Weld Flange TS-0550-3114\n
  • ALV40 5-1 Weld Flange TS-0550-3104\n
  • ALV40 4-1 Weld Flange TS-0550-3098\n
  • ALV40 3-1 Weld Flange TS-0550-3099\n
  • ALV40 2-1 Weld Flange TS-0550-3100\n
  • ALV40 Inlet Weld Flange – Alloy TS-0550-3101\n
  • ALV40 Inlet Pipe Adapter 1 3/4" (44.5mm) TS-0550-3102\n
  • ALV40 Inlet Pipe Adapter 1-1/2" (38.1mm) TS-0550-3103\n
  • GenV Position Sensor Cap (Upgrade) TS-0550-3062\n
  • GenV Position Sensor (Replacement) TS-0550-3057\n
  • 1/8NPT to 6mm Hose End Adaptor TS-0550-3008\n
  • 1/8NPT to -3AN Male to Male Adaptor TS-0550-3050\n
  • 1/8NPT to -4AN Male to Male Adaptor TS-0550-3051\n
  • 1/8NPT 90º Poshloc Fitting – Hi-Temp (1/4“) TS-0550-3054\n
  • 1/8NPT T-Piece Pushloc Fitting – Hi-Temp (1/4“) TS-0550-3055\n
  • 1/8NPT Straight Pushloc Fitting – Hi-Temp (1/4“) TS-0550-3053\n
  • Hi-Temp Pushloc Tubing 1/4" Black (3 Metres) TS-0550-3056\n
    TOOLS\n
  • C Spanner / Collar Tool TS-0550-3013\n
  • GenV ALV40 Welding Purge Bung TS-0550-3076\n
  • GenV ALV40 Diaphragm Replacement Tool TS-0550-3093\n
  • Wastegate Press / Spring Change Assistance Kit TS-0550-3094\n\n

  • Onderdeelnummer: TS-0552-1601
    1.321,02 € 1.321,02 € (Inclusief btw)

    • Merk
    • Verpakking
    Product specificaties
    Merk: Turbosmart
